Cisco
NEXUS 7000 - 7.5KW AC POWER/SUPPLY MODULE US (CABLE INCL IN
60632.74 RON
Pretul include TVA
Stoc epuizat
Cod produs: N7K-AC-7.5KW-US=
Notificare de stoc
Anunta-ma prin email cand produsul revine
in stoc.
Descriere
The Cisco Nexus™ 7000 Series Power Supply Modules deliver fault tolerance, high efficiency, load sharing, and hot-swappable features to the Cisco Nexus 7000 Series. Each Cisco Nexus 7000 Series chassis can accommodate multiple power supplies providing both chassis-level and facility power fault tolerance.
The variable output power supplies scale from 3000 to 7500 watts (W) and support multiple system-level redundancy options for greater availability. Designed to address high-availability requirements, the power supplies incorporate internal component-level monitoring, temperature sensors, and intelligent remote-management capabilities.
The power supply modules are fully hot swappable, helping ensure no system interruption for installation or upgrades, and they are fitted at the back of the Cisco Nexus 7000 Series Chassis, allowing installation and removal without disturbing the network cabling on the front.

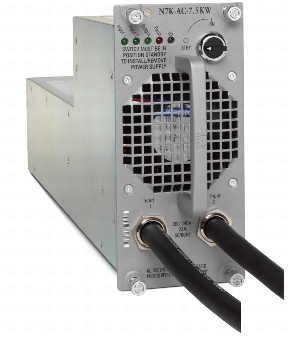

Cisco Nexus 7000 7.5kW AC Power Supply
The 7.5kW AC power supply module for the Cisco Nexus 7000 Series is a dual 30A AC input unit. The AC power cords for the 7500W power supply are hard wired directly to the power supply. When both inputs are connected, the output power is 7500W. If less power is required when just one input is connected, the power output is 3750W. Two versions of the 7.5kW AC power supply are available: US and Japan, and International.
The variable output power supplies scale from 3000 to 7500 watts (W) and support multiple system-level redundancy options for greater availability. Designed to address high-availability requirements, the power supplies incorporate internal component-level monitoring, temperature sensors, and intelligent remote-management capabilities.
The power supply modules are fully hot swappable, helping ensure no system interruption for installation or upgrades, and they are fitted at the back of the Cisco Nexus 7000 Series Chassis, allowing installation and removal without disturbing the network cabling on the front.
Cisco Nexus 7000 7.5kW AC Power Supply
The 7.5kW AC power supply module for the Cisco Nexus 7000 Series is a dual 30A AC input unit. The AC power cords for the 7500W power supply are hard wired directly to the power supply. When both inputs are connected, the output power is 7500W. If less power is required when just one input is connected, the power output is 3750W. Two versions of the 7.5kW AC power supply are available: US and Japan, and International.
Specificatii tehnice
| Alimentare | 170 - 264 V; 7500 W |
| Dimensiuni | 101 mm |
| Greutate | 10500 g |
| Culoare | Grey |
| Alte caracteristici | 24 A; 47 - 63 Hz; 20 ms; Cisco Nexus 7010, Cisco Nexus 7018; 204053 h; 80 PLUS Silver; Ul/CSA/IEC/EN 60950-1, AS/NZS 60950; 0 - 40 °C; -40 - 85 °C; 10 - 90%; 10 - 95%; 216 mm; 445 mm; 28500 BTU/h |
