Cisco

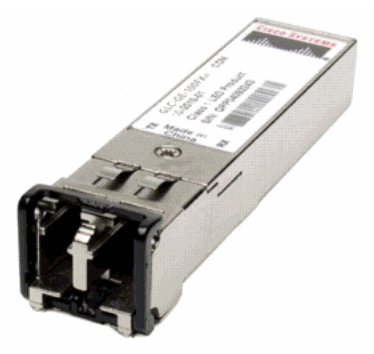

FP+ BIDIRECTIONAL FOR 10KM UPS/IN
42046.64 RON
Pretul include TVA
Stoc epuizat
Cod produs: SFP-10G-BXU-I=
Notificare de stoc
Anunta-ma prin email cand produsul revine
in stoc.
Descriere
The Cisco SFP-10G-BXD-I and SFP-10G-BXU-I SFPs operate on a single strand of standard SMF.
A SFP-10G-BXD-I device is always connected to a SFP-10G-BXU-I device with a single strand of standard SMF with an operating transmission range up to 10 km.
The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices. SFP-10G-BXD-I transmits a 1330-nm channel and receives a 1270-nm signal, whereas SFP-10G-BXU-I transmits at a 1270-nm wavelength and receives a 1330-nm signal. The presence of a wavelength-division multiplexing (WDM) splitter integrated into the SFP to split the 1270-nm and 1330-nm light paths.
A SFP-10G-BXD-I device is always connected to a SFP-10G-BXU-I device with a single strand of standard SMF with an operating transmission range up to 10 km.
The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices. SFP-10G-BXD-I transmits a 1330-nm channel and receives a 1270-nm signal, whereas SFP-10G-BXU-I transmits at a 1270-nm wavelength and receives a 1330-nm signal. The presence of a wavelength-division multiplexing (WDM) splitter integrated into the SFP to split the 1270-nm and 1330-nm light paths.
Specificatii tehnice
| Porturi & Interfete | SFP+ |
| Retea & Conectivitate | IEEE 802.3,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3u |
| Dimensiuni | 13.4 mm |
| Alte caracteristici | 10000 m; 10GBASE-BXU; LC; 10000 Mbit/s; Yes; 1270 nm; 9/125 µm; Fiber optic; MSA; -40 - 85 °C; 0 - 95%; 56.5 mm; 8.5 mm; 1 pc(s); 85369010 |
